ROCKFALL MITIGATION MEASURES AT SAPTSHRUNGI GAD, NASHIK

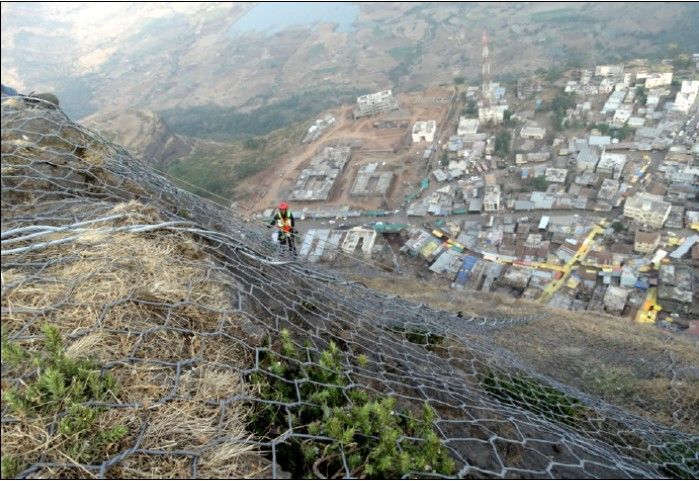

Steelgrid MO laid out on slope surface

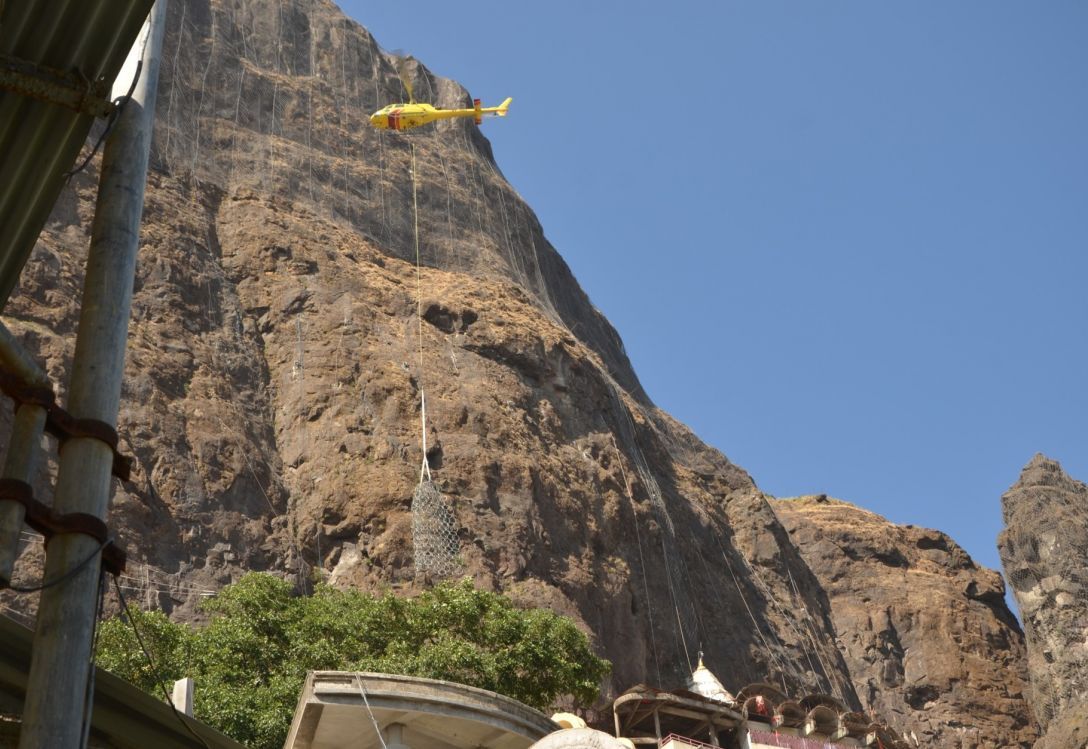

Helicopter used to transfer material during installation

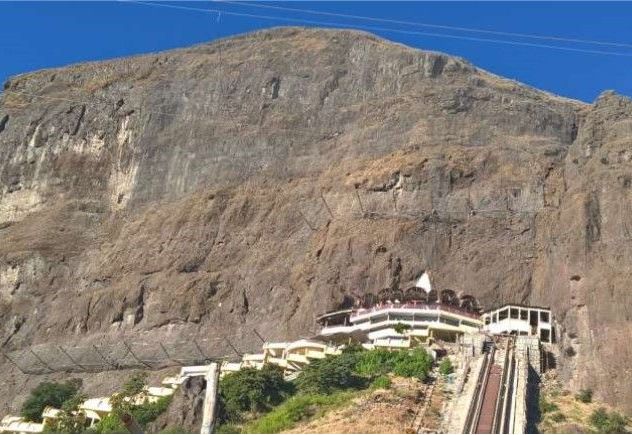

Completed scope of two lines of rockfall barriers and secured drapery system
Problem
The Saptashrungi Gad temple is a Hindu pilgrimage site situated at Vani, near Nashik. Large numbers of pilgrims move along the Parikrama path (pathway around the shrine) at the temple, which is situated in high hill terrace comprising of moderately weathered and fractured basaltic terrain where numerous rocks are hanging precariously at many locations. Due to the extreme weathering, the loose rock mass from the top of the hill occasionally fall, bounce, roll and slide down along the hill slope with some rocks landing on or passing the temple complex and the Parikrama path causing fatal injuries to the pilgrims. The work site involved a very large area and posed numerous challenges because of inaccessible terrain, low visibility, higher slope (about 200m from road level) and bigger threats of rockfall. Engineering investigations were carried out and studies were done by geologists and other experts to provide solutions to mitigate the rockfall problem.
Solution
The rockfall mitigation measures constituted of secured drapery system with Steelgrid MO and High Energy Absorption (HEA) panels and surface anchoring. Two lines of flexible rockfall barrier of 5000 kJ capacity and 7m height of total length 150m were strategically installed above the temple and Parikrama path to provide an additional safety layer in view of highly sensitive site requirements. Helicopter was employed for shifting various components. After installation completion in Dec-2015, a rockfall event was reported on slope above the temple in June-2017 and has been successfully contained by the dynamic barrier. The maintenance activities were done to remove the boulders and repair of the damaged components. This project was selected as one of the finalists of Ground Engineering Awards- 2017 under “International Project of the Year Award” Category” on account of its innovative design to overcome a significant geotechnical challenge, demonstration of delivery of value and quality for the client, involvement with project stakeholders and community to deliver a successful outcome and efficient and collaborative delivery through close relationships with the client and supply chain.
Used Products
拦石网
马克菲尔拦石网（或 挡板）旨在阻止/捕获落下的岩石和巨石，防止被落入基础设施、矿山运输道路或其他开发项目。 产品组合规格范围从 35 kJ/H=1.35m 到 9000 kJ/H=8m。 View
HEA钢丝绳网
HEA钢丝绳网是整个马克菲尔落石防护体系中刚度最大的柔性金属网，具有很高的强度与非常小的应变。刚度是影响落石防护挂网类系统整体受力性能的最主要因素，比金属网强度更加重要。HEA钢丝绳网由一整根连续的高强度钢丝绳编织而成，网中钢丝绳的交叉节点采用特殊的“双股钢丝缠绕”方式固定。 View
