ROB FOR CONNECTIVITY BETWEEN MUNDRA AND NH 8A

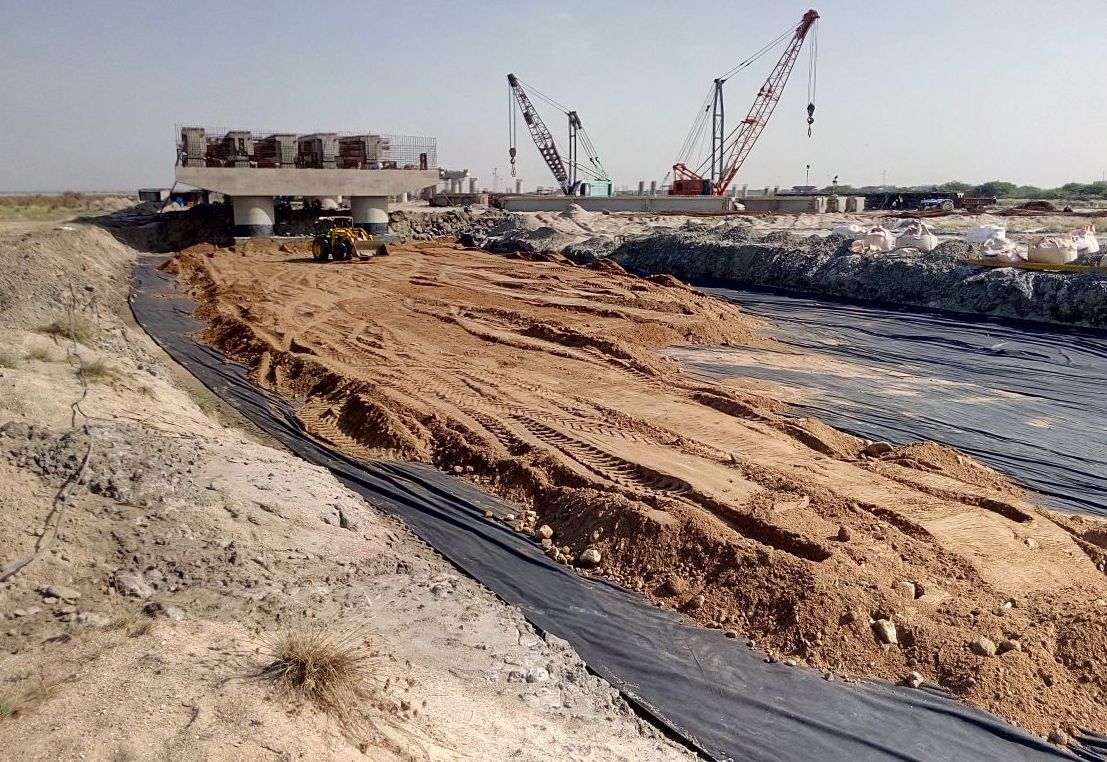

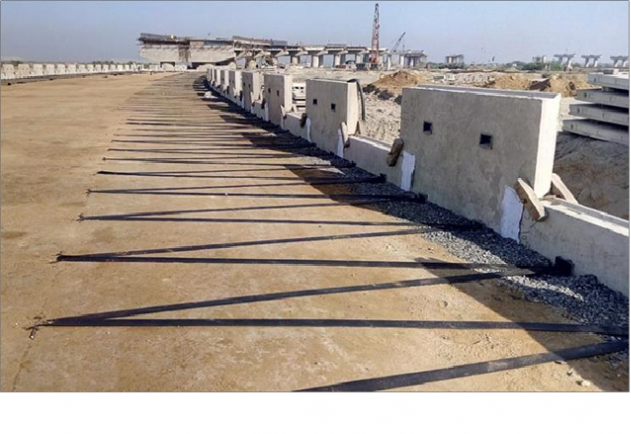

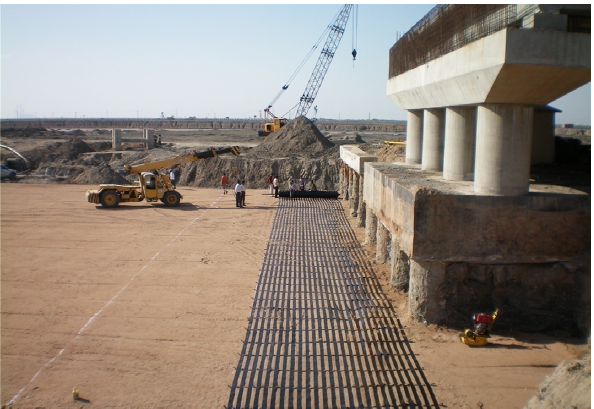

The stone column technique, also known as vibro-replacement or vibro-displacement, is a ground improvement process where vertical columns of compacted aggregate are formed through the soils to be improved. Primary purpose of soil improvement by stone column technique is to increase the bearing capacity of foundation soil and reduce post construction settlement. Stone column derives its support from lateral resistance provided by the surrounding soil, which is caused by: • bulging of the uncemented stone column under the load. • resistance due to surcharge effect. • bearing support offered by intervening soil. The geosynthetic raft is ParaLink®, which is a monoaxial array of geosynthetic strips having unidirectional strength ranging from 100 to 1350 KN/m. The purpose of providing ParaLink® as basal reinforcement is to ensure proper distribution of the load from the superstructure to the stone columns and reduce differential settlements. Ground Improvement details: The area is recommended to be excavated till the founding level where the stone columns are installed. Stone columns: • South side – entire zone including the reinforced and unreinforced section was improved by stone column technique. • North side – owing to relatively better quality of soil, stone columns were provided only under reinforced soil. ParaLink® was laid throughout the entire zone.
