Reinforced Soil Walls and Slope Reinforcement
2003
Mendoza, Argentina
Dirección Provincial de Vialidad de Mendoza
UTE HOMAQ - ROVELLA - PAEDILLE
Perilago Path – Reconstruction of Route 82
Problem

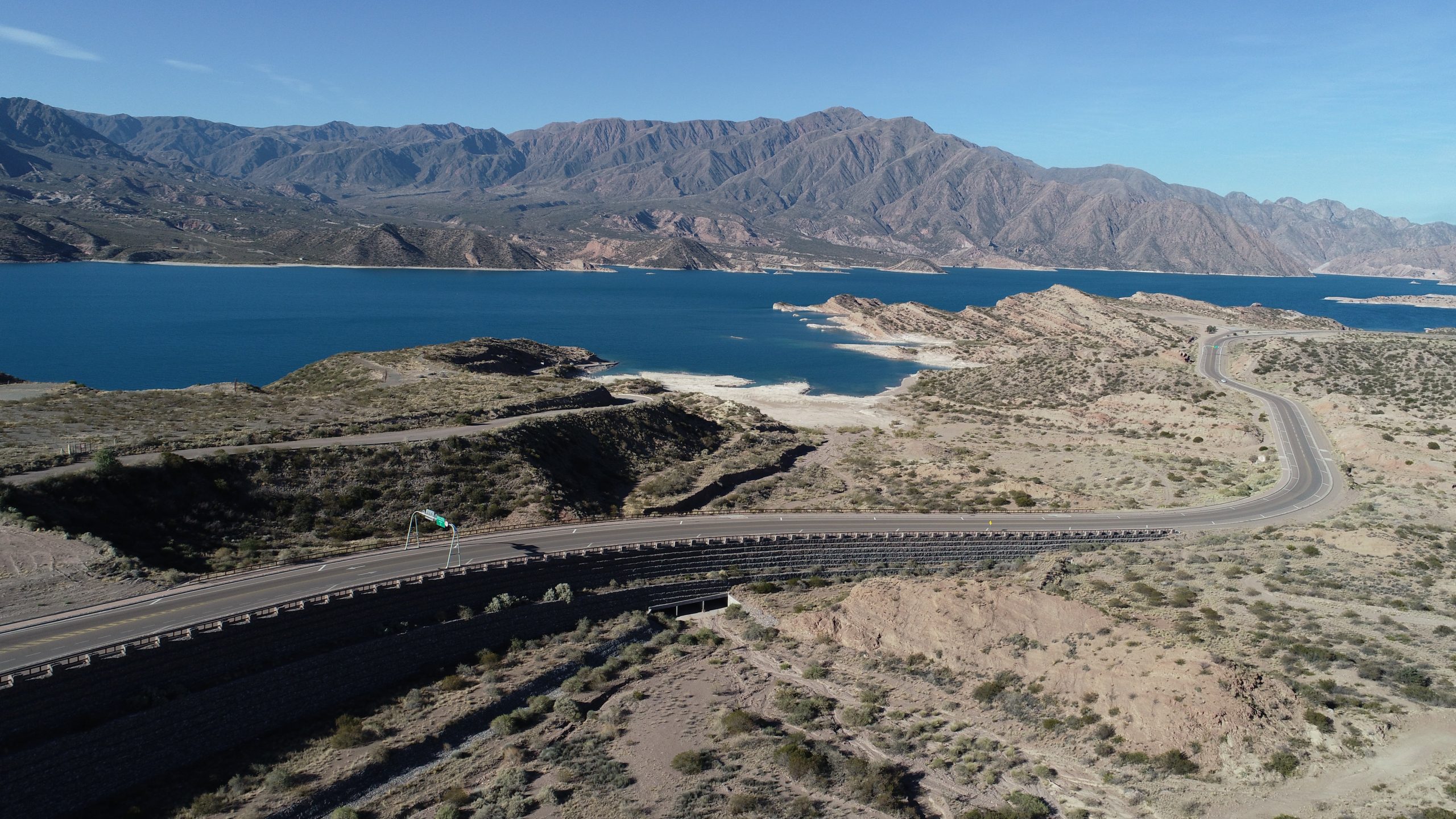

For the construction of the Potrerillos dam in the province of Mendoza. The dam was built between 1999 and 2003 by a consortium consisting of Industrias Metalúrgicas Pescarmona (IMPSA) to provide flood control, hydroelectricity and irrigation water.The main problem was that in order to build the dam it was necessary to interrupt route 82. This route connected the cities of the region, like Potrerillos and Cacheuta. Once the construction of the dam was finished, work began on the reconstruction of route 82 in order to restore the connection between Potrerillos and Cacheuta. The trace of route 82 was also redesigned to generate a tourist path in the perimeter of the lake (reservoir).
Solution

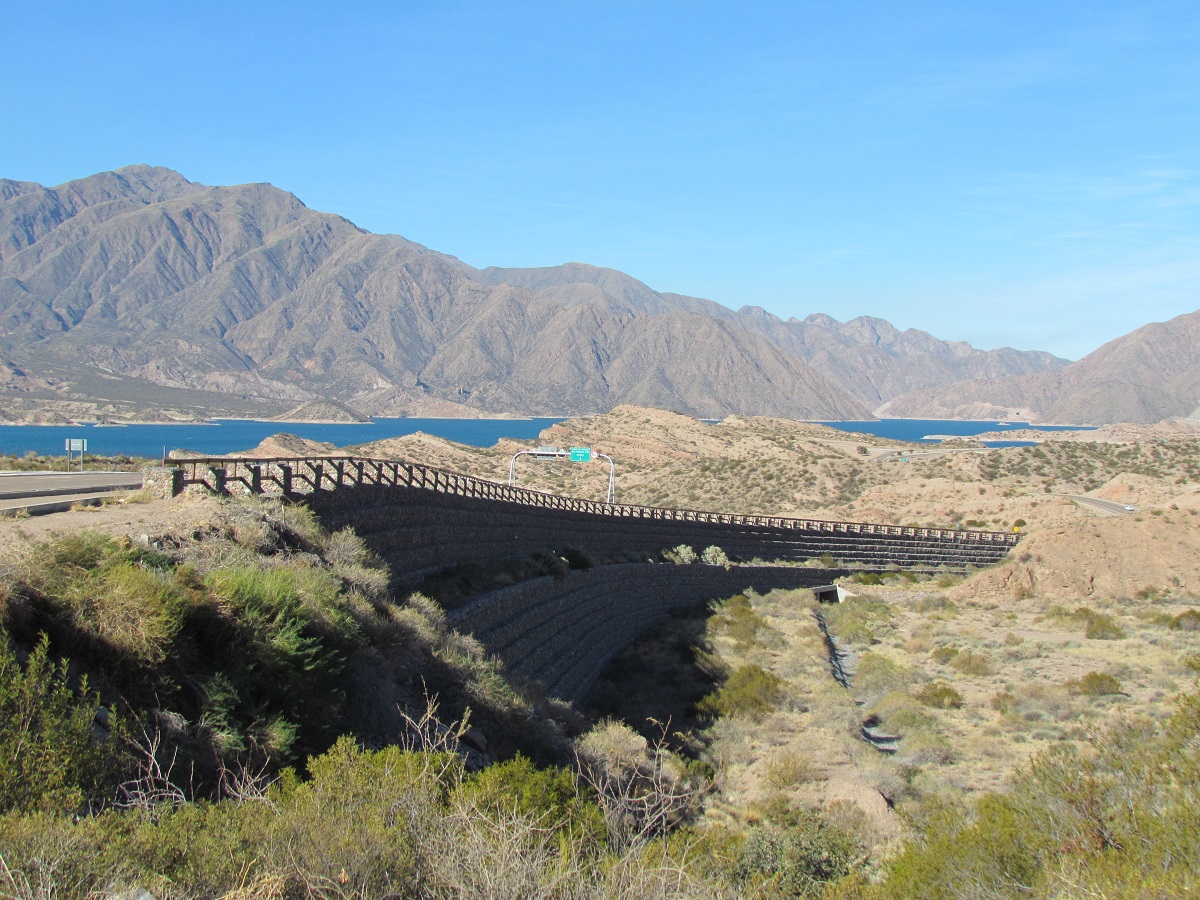

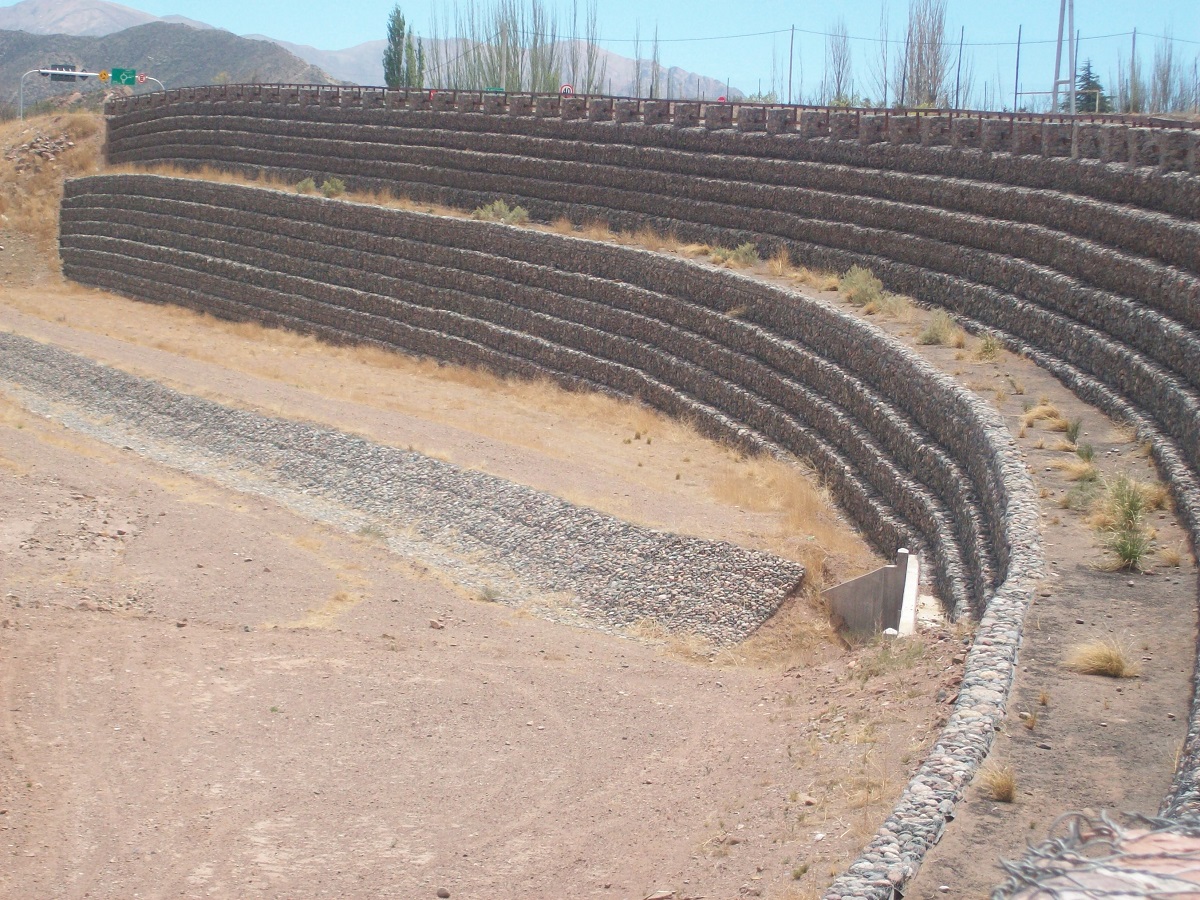

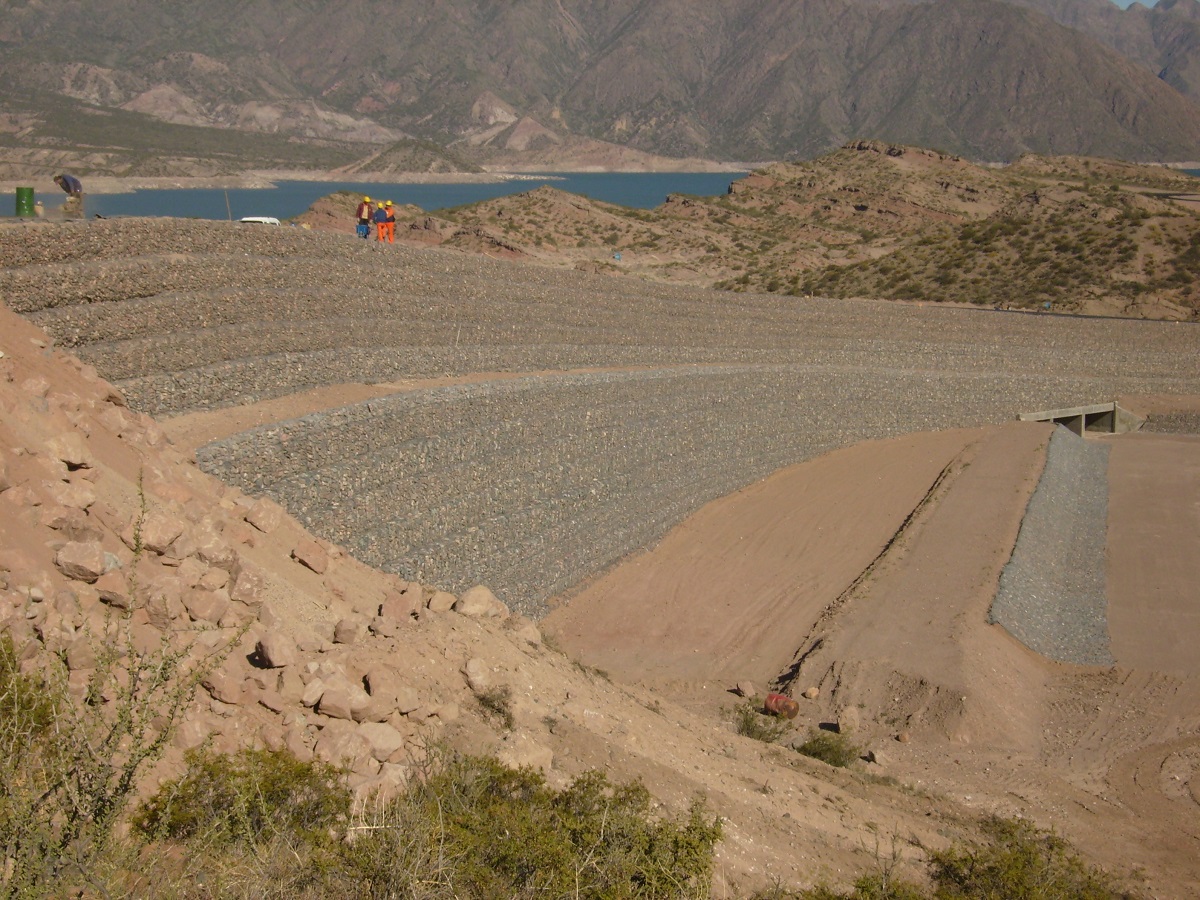

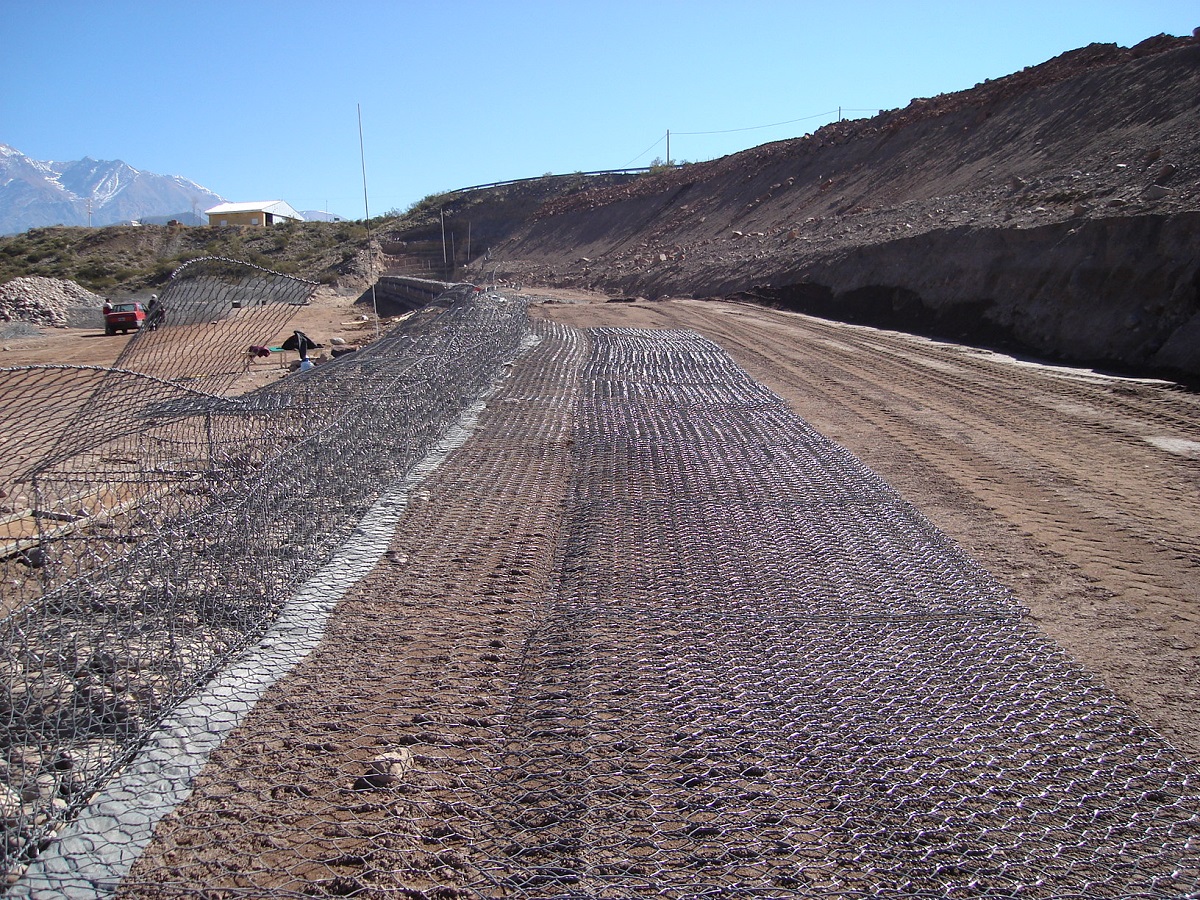

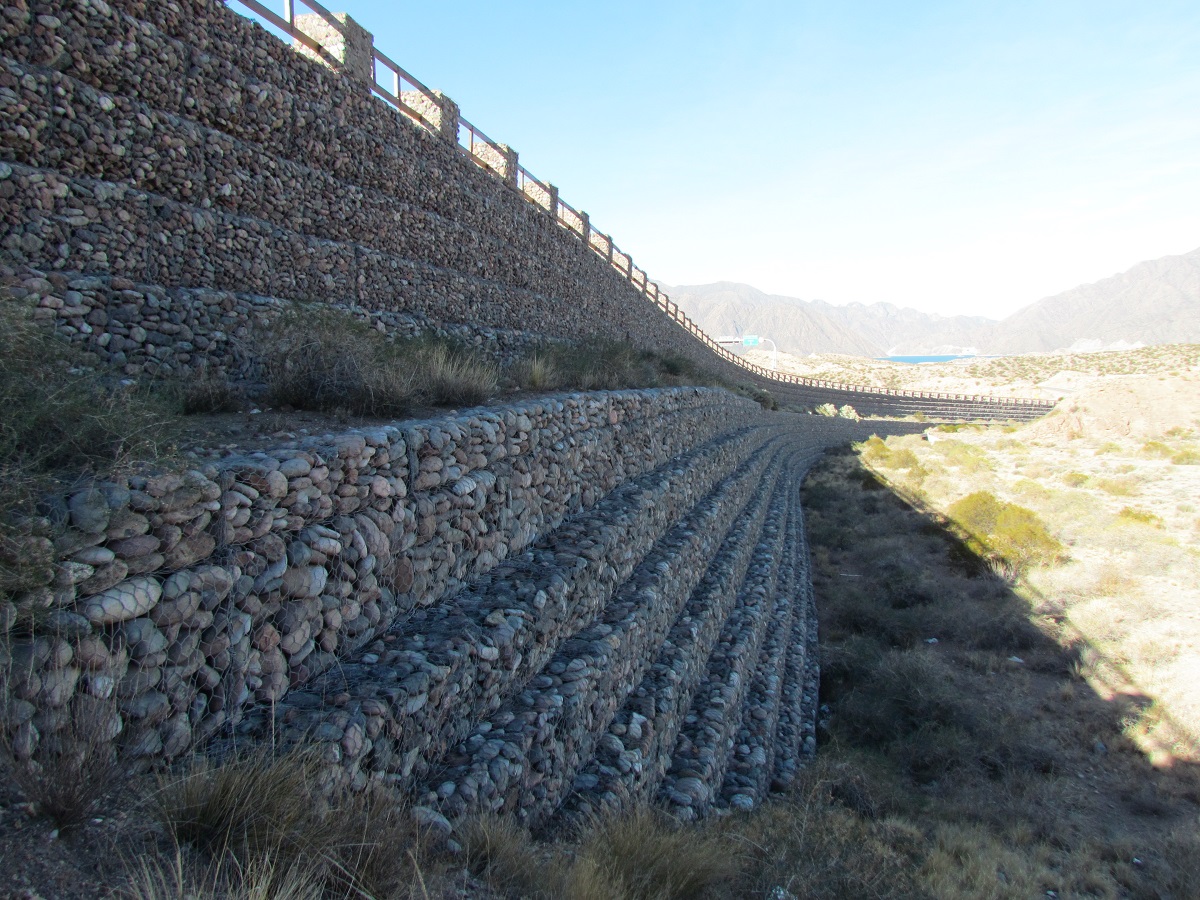

The most adequate solution for the needs of the work was the reinforced soil. The structure was designed with TerraMesh™ System, the built wall has a maximum height of 15m and a 22° inclined vertical face. It was also necessary to provide protection at the foot with Reno® mattresses, in order to protect the structure from the effect of erosion from rainwater.TECHNICAL HIGHLIGHTS3,965 m2 of TERRAMESH™94.5 m3 of GABION™2,190 m2 of RENO MATRESS26,600 m2 of MACTEX™ N
Used Products

格宾
马克菲尔高强面板格宾是一种双绞“DT”金属丝网容器,尺寸可变,均匀划分为内部单元,与其他类似单元互连,并在项目现场填充石头,形成灵活、可渗透的整体结构,如质量重力墙、用于岩土、水力和侵蚀控制项目的通道衬里、护岸和堰。 马克菲尔格宾箱体由优质钢丝制成。与众不同的是可制造更厚View
加筋格宾
马克菲尔 Terramesh® 系列包括用于建造机械稳定土 (MSE) 结构和加固土坡 (RSS) 的不同面层选项。 加筋格宾由双绞合金属网(网孔规格8X10)构成,可就地随时组装。面板及盖板是一块连续的网板,无需现场切割操作。 Terramesh® 装置由优质钢丝和聚合物涂层 (PolimaView
雷诺护垫
100多年前,马克菲尔在雷诺河防护工程中首次使用了雷诺护垫,雷诺护垫因此而得名。如今,在全球范围内,雷诺护垫早已成为水利工程和侵蚀防护的代名词。 在马克菲尔,我们坚信创新! 解决方案和产品方面的创新是成功公司发展的重要组成部分。 View
