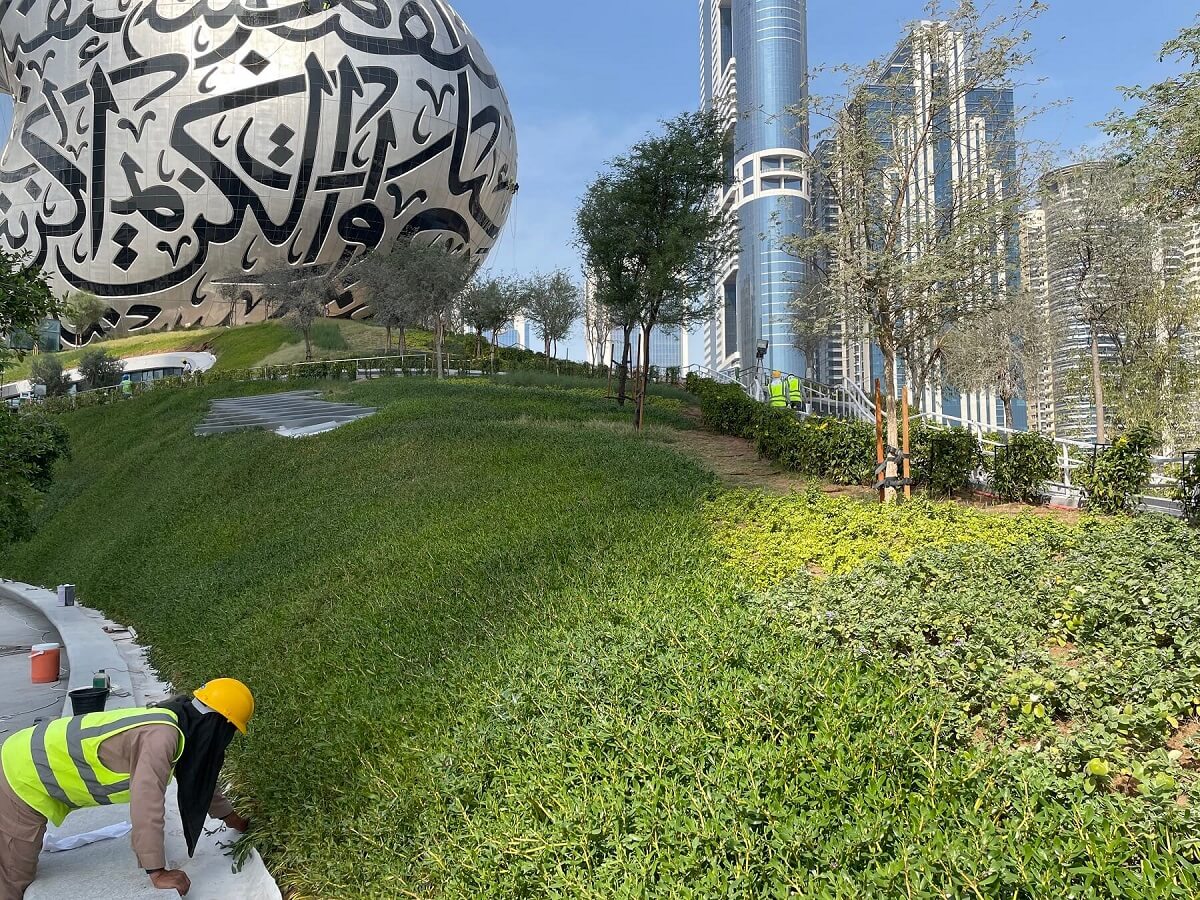

Museum of the Future – GREEN COVERAGE AND DRAINAGE SYSTEM

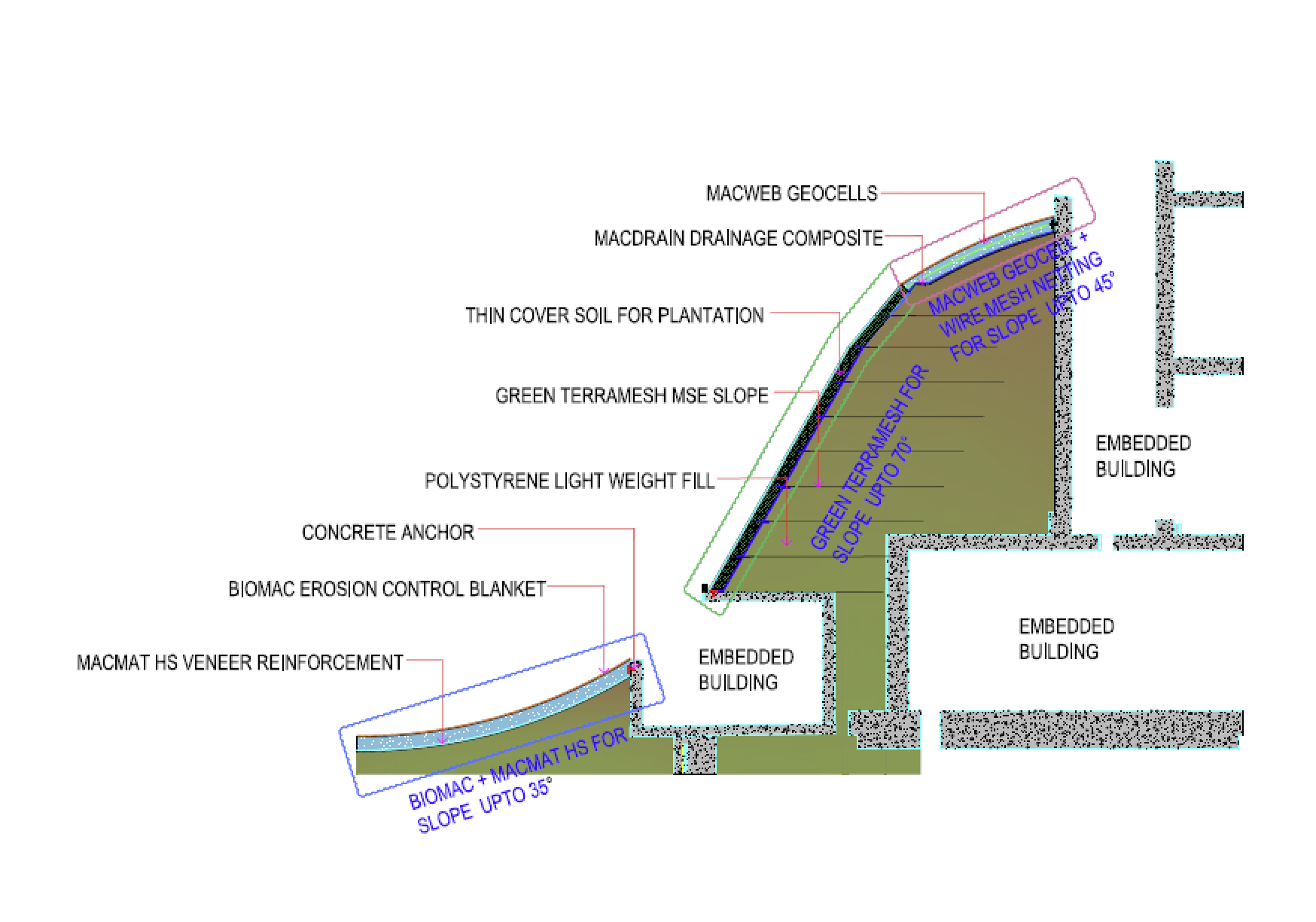

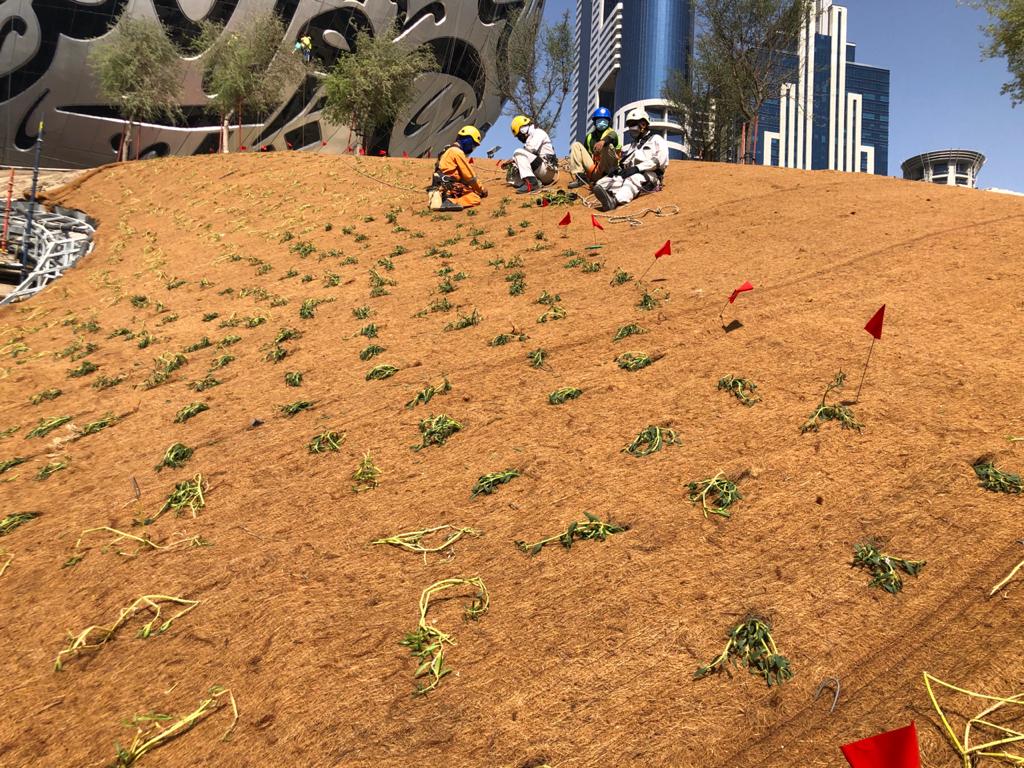

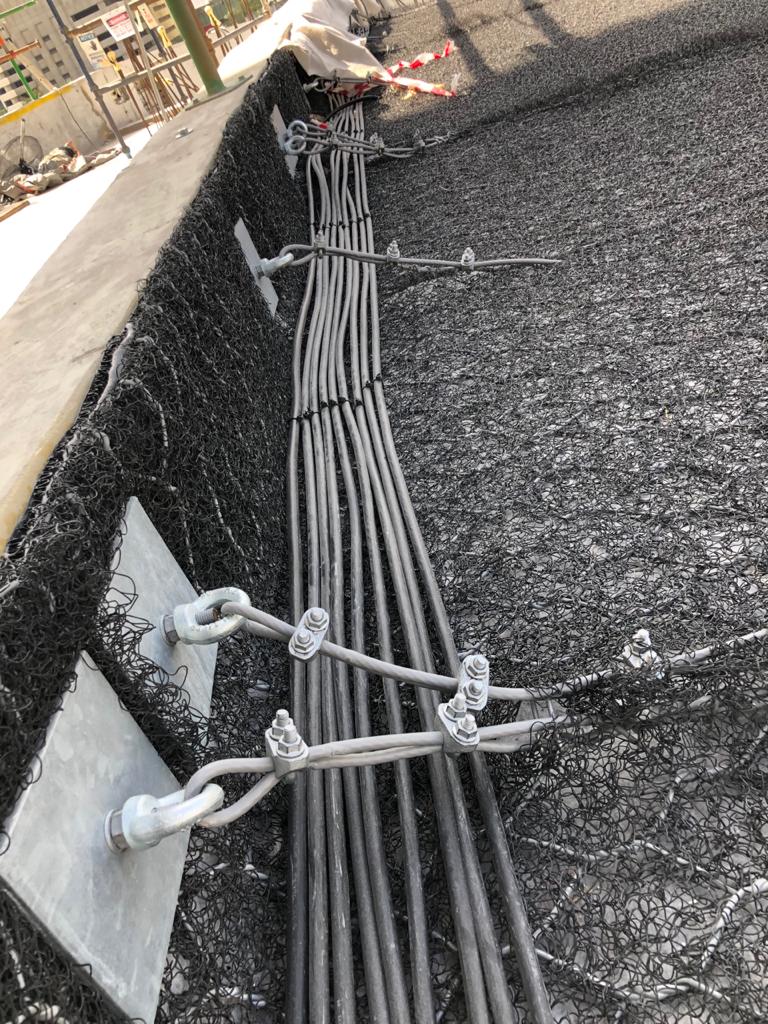

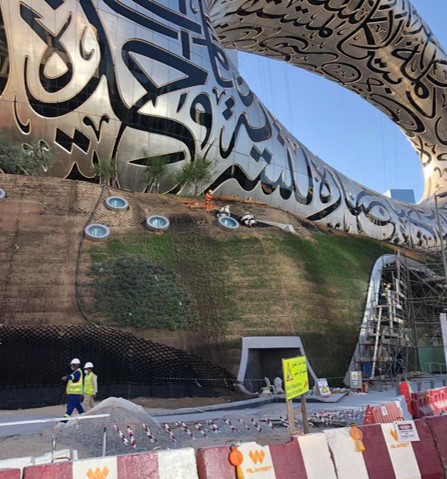

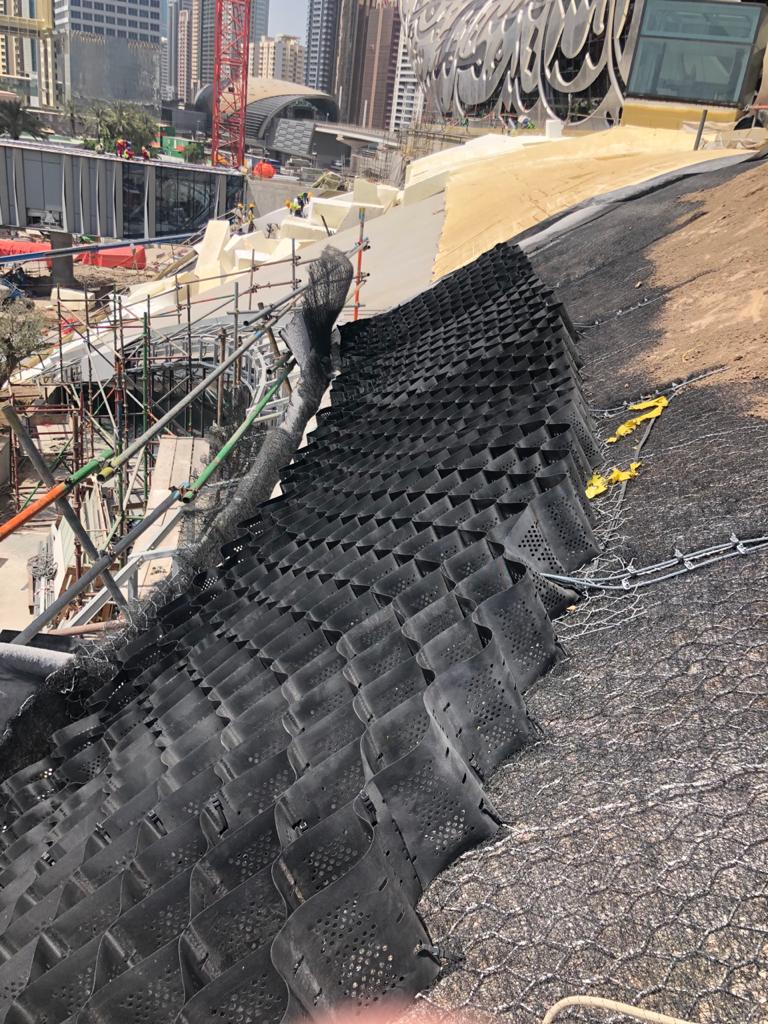

Maccaferri was chosen as the technology provider for the GREEN COVER SYSTEM; thanks to the wide range of products in our portfolio that can achieve the varying slope requirements of the artificial green mount in the project. After studying the landscaping requirements, Maccaferri proposed to categorize the green cover system based on final slopes, and accordingly, the products were suitably chosen as (1) Biomac cover for slopes up to 35-degree inclination, (2) Macweb geocell for slopes up to 45-degree inclination and (3) Green Terramesh reinforced soil system for slopes up to 70-degree inclination. For the first two cases, continuous veneer reinforcement was proposed below the thin soil fill by means of Maccaferri wire netting or Macmat HS, which will be anchored on the concrete beams at the top. Additionally, Macdrain drainage composite was proposed below the entire surface area of the green cover system for the easy draining of continuous irrigation water expected in the future. Maccaferri was involved in the design, supply, and construction assistance of the project.TECHNICAL HIGHLIGHTS3,500 m2 of Green Terramesh3,000 m2 of MacWeb12,500 m2 of MacDrain W6,000 m2 of MacMat HS9,000 m2 of Biomac natural3,000 m2 of DT Mesh
