Reinforced Soil Walls and Slope Reinforcement
2020
PRISHTINE - KOSOVO - Kosovo
Republic of Kosovo, Ministry of Infrastructure
BECHTEL ENKA GENERAL PARTNERSHIP
TEMPUS PROJECT Ltd.
KOSOVO MOTORWAY PROJECT
Problem

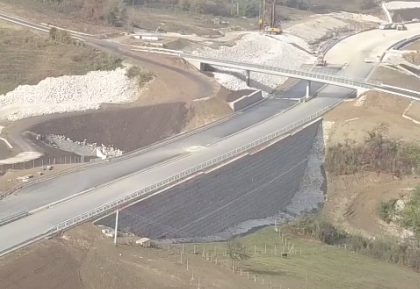

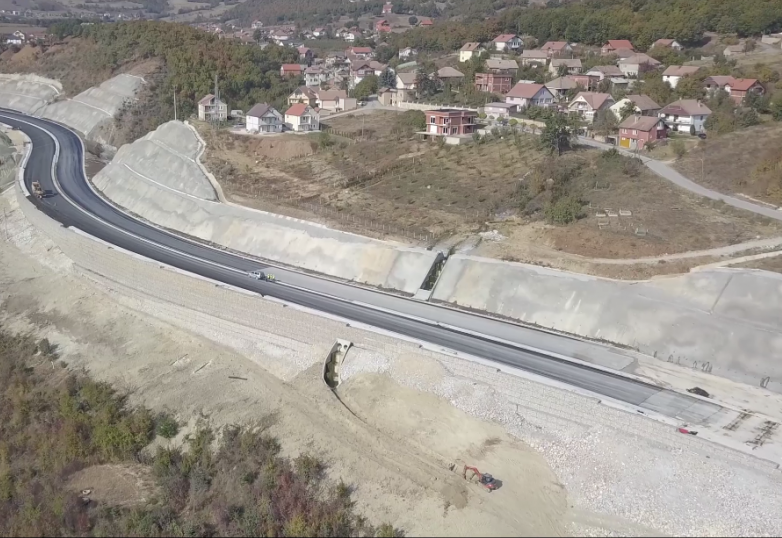

This project has implied reinforced soil wall design, material supply and installation. The main contractor was Bechtel Enka general partnership. Bechtel Enka joint-venture completed Kosovo’s first two motorways – Route 6 and Route 7. Route 6 Prishtine – Hani i Elezit is an integral part of road corridor which connects capital cities, Prishtine and Skopje (FYR Macedonia). Together these motorways create a transport corridor from Kosovo’s border with Albania, via its capital, to its border with North Macedonia. The walls have been built in a seismic and montainous area for a total of more than 13800 sqm of reinforced soil facing.
Solution

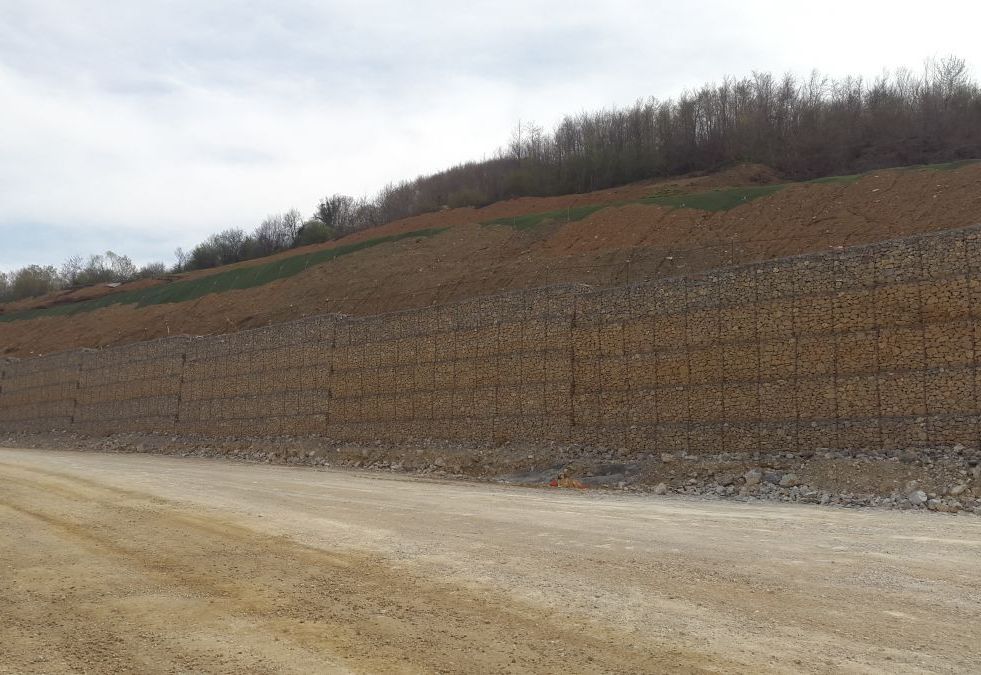

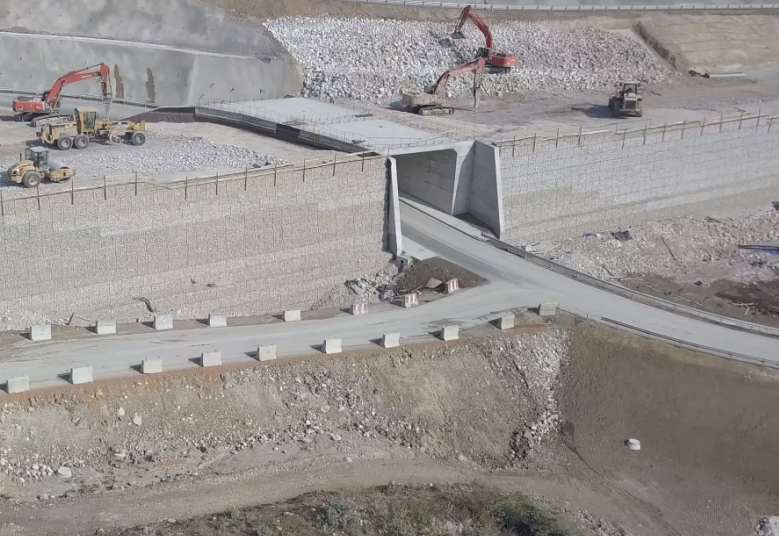

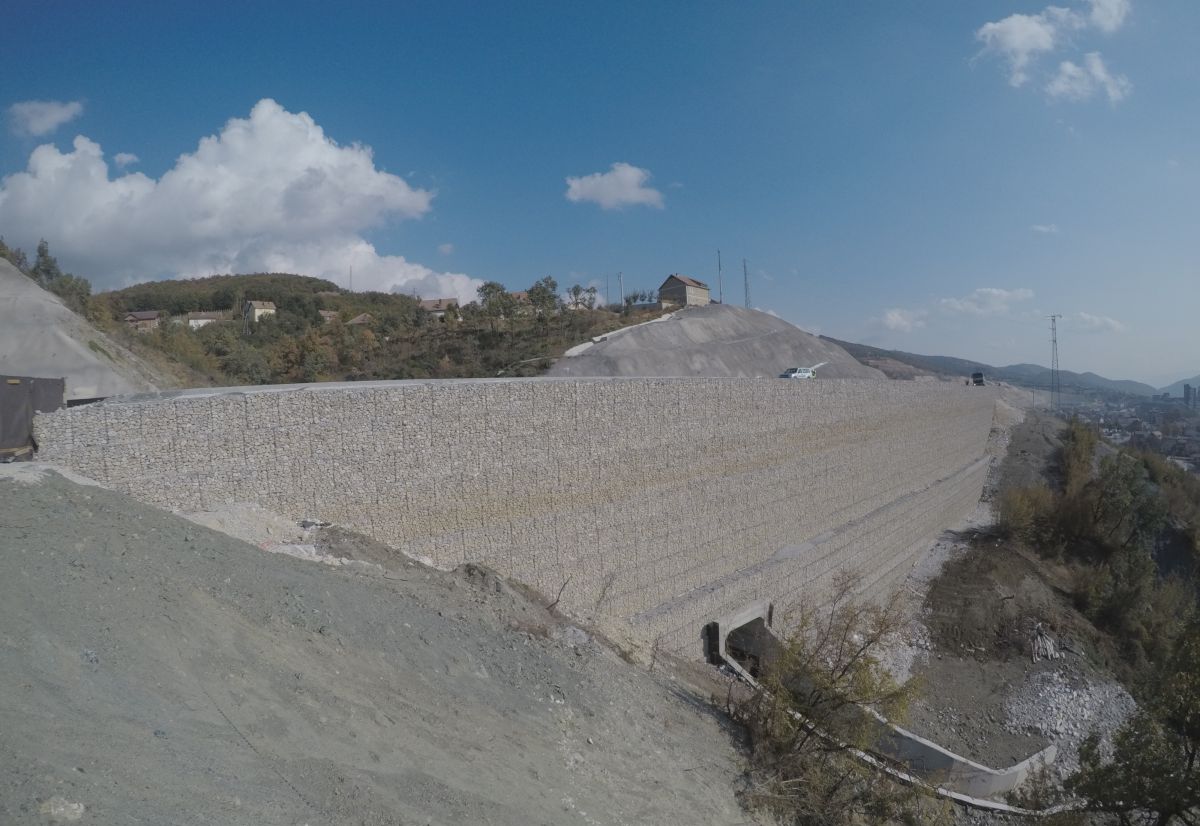

Mainly, seven Paramesh system walls have been built: WL 015, WL 024, WL 060, WR 131, WR 134, WR 139, WR 406. The main products used are Terramesh System 3x2x0.5 and 3x2x1, MacTex H35.1, ParaLink 500, ParaLink 300 and ParaGrid 150. The project included also gabions walls, soil nailing with MacMat and rockfall protection. Most of the walls comprises of box culverts at the bottom for the runoff of water. The maximum height of the reinforced soil walls is nearly 25 meters.
Used Products
加筋格宾
马克菲尔 Terramesh® 系列包括用于建造机械稳定土 (MSE) 结构和加固土坡 (RSS) 的不同面层选项。 加筋格宾由双绞合金属网（网孔规格8X10）构成，可就地随时组装。面板及盖板是一块连续的网板，无需现场切割操作。 Terramesh® 装置由优质钢丝和聚合物涂层 (PolimaView
无纺土工布
无纺土工布是由合成纤维组成的扁平织物结构，通过针刺或热处理随意组装而成；主要用于实现分离、过滤和保护功能，并且是许多其他复合材料与土工合成材料组合的基础。 它们的质量和性能会因纤维长度、使用的聚合物、组装过程等而有所不同； 土工合成材料是最常见的一种。View
